| Normative standard: | BS1363-1 figure 2, BS1363-2 figure 2, BS1363-3 figure 2 | Application: | for checking if the live parts of BS plugs with resilient covers is accessible |
|---|---|---|---|
| Steady force: | 230-240N |

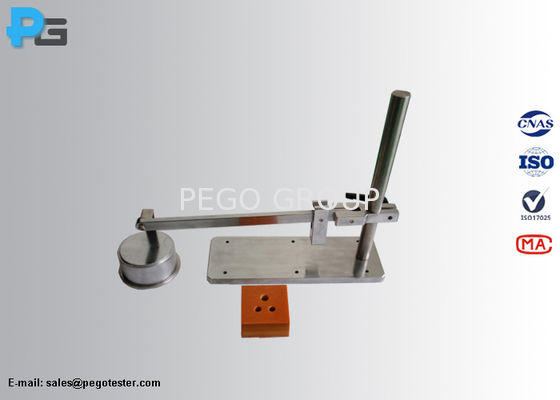

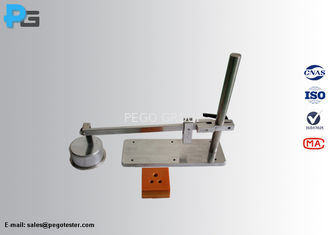

Apparatus for Mechanical Strength Test on Resilient Covers BS1363-1 Figure 2 for Plug and Socket Tester
1. Introduction
Apparatus for mechanical strength test on resilient covers is designed according to BS1363-1 figure 2 & clause 9.3.1, BS1363-2 figure 2 & clause 9.3.1, BS1363-3 figure 2 & clause 9.4.1, for checking if the live parts of BS plugs with resilient covers is accessible to the users under normal use.
2. Specification
|
Steady force |
230-240N |
|
Loading surface |
Stainless steel square (25.2-25mm) with chamfer R2.5~R2.0mm |
|
Hardwood block |
Designed according to BS1363-1 figure 2b |
