تفاصيل المنتج:
شروط الدفع والشحن:
|
| المعيار المعياري: | IEC61347-1 الشكل D.1 والملحق د | بعد العمل: | L610mm * W610mm * H610mm |
|---|---|---|---|
| بعد مقصورة الاختبار (أرضية): | L560mm * W560mm * D25mm | كائن اختبار: | مكافحة مصباح محمية حراريا (الصابورات) |

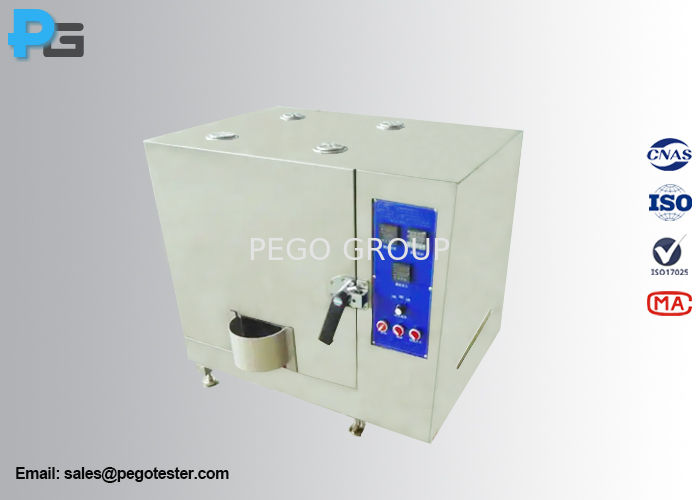

| إبراز: | IEC61347-1 heating enclosure,thermally protected ballast tester,LED testing equipment enclosure,thermally protected ballast tester,LED testing equipment enclosure |
||
| Parameter | Details |
|---|---|
| Inner dimension | L610mm × W610mm × H610mm |
| Overall dimension | L660mm × W660mm × H760mm |
| Dimension of test compartment (floor) | L560mm × W560mm × D25mm |
| Height of heater compartment | 75mm |
| Structure of front door | Up-and-down sliding type, with an opening size of 150×150 mm, and sealed by an aluminium semicircular structural component |
| Sample supports | Designed according to figure D.1 of IEC61347-1 |
| Heating elements |
|
| Control unit |
|
| Test temperature | 40℃ |
| Working power | 220V±10%, 50Hz |
