تفاصيل المنتج:
شروط الدفع والشحن:
|
| معيار: | IEC60851-3 | قطر المكشطة: | (0.23±0.01) ملم |
|---|---|---|---|
| سرعة كشط جهاز الكشط: | (400±40) مم/دقيقة | اختبار الجهد: | تيار مستمر (6.5 ± 0.5) فولت |
| تيار الدائرة القصيرة: | (20±0.5) مللي أمبير | مزود الطاقة: | AC 220V ± 10 ٪ ، 50 هرتز |
| إبراز: | IEC60851-3 Standard Enamelled Round Wire Abrasion Resistance Test Apparatus,DC (6.5±0.5)V Test Voltage Abrasion Resistance Test Apparatus,Automatically Rotating Sample Enamelled Wire Test Apparatus |
||

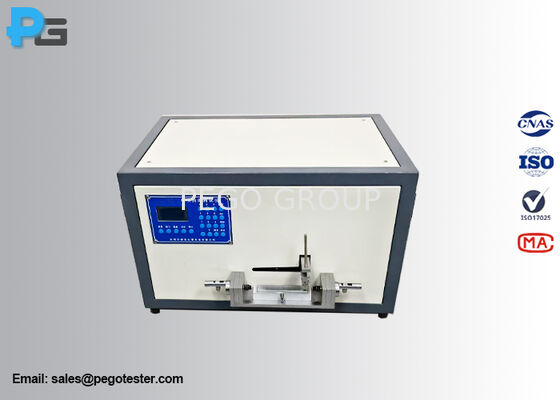

IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus The enamelled round wire abrasion resistance test apparatus is designed according to IEC60851-3 clause 7 figure 1 and figure 2 and GB/T4074.3 clause 5.2. This equipment is used to test the abrasion resistance of the enamel film on round enameled wires with a nominal conductor diameter over 0.250 mm. Test Principle A straight piece of wire is subjected to a unidirectional scrape test by a needle to which a
